概述

参考:

OpenWrt 项目是一个针对嵌入式设备的 Unix-like OS。与尝试创建单一、静态固件不同,OpenWrt 提供了一个完全可写的文件系统,并配备了软件包管理。这使您摆脱了供应商提供的应用程序选择和配置,并允许您通过使用软件包来定制设备,以适应任何应用程序。对于开发人员来说,OpenWrt 是构建应用程序的框架,无需在其周围构建完整固件;对于用户来说,这意味着完全定制的能力,可以以前所未想象的方式使用设备。

OpenWrt 的包管理器是 OPKG。

据说,爱快(ikuai) 是基于 OpenWrt 的二次封装系统。

ikuai 与 OpenWrt 大部分出现在软路由场景。

iStoreOS 是 koolshare 团队基于OpenWrt定制的软路由系统

OpenWrt 生态项目

  • luci # Lua 开发的配置接口。名称是 lua + uci 的组合。
  • uhttpd # HTTP 服务器。通常与 LuCI 组合使用
  • etc.

关联文件与配置

安装

安装操作系统 的逻辑类似,大体分如下几步

  • 下载 Release
  • 将 Release 制作到 U 盘中
  • 在目标机器上插入 U 盘并写入 OpenWrt 系统

Release

官方

https://downloads.openwrt.org/

https://downloads.openwrt.org/releases/

简单的虚拟机测试与体验

使用 openwrt-24.10.1-x86-64-generic-ext4-combined-efi.img.gz Release 作为示例(带有 LuCI 的 Web 页面),下载并解压

将解压后的 img 转成 qcow2

qemu-img convert -f raw -O qcow2 openwrt-24.10.0-x86-64-generic-ext4-combined-efi.img openwrt-original.qcow2

安装时直接导入转换后的 qcow2 文件即可

virt-install --name openwrt-original \
--memory 2048 --vcpus 1 \
--os-variant linux2024 \
--disk /var/lib/libvirt/images/openwrt-original.qcow2,bus=virtio \
--network bridge=br0,model=virtio \
--graphics vnc,listen=0.0.0.0,port=5911 \
--noautoconsole \
--import

默认启动了虚拟机的 Console 可直接进入

一般出现 “Please press Enter to activate this console.” 即表示正常

]# virsh console openwrt-original
Connected to domain 'openwrt-original'
Escape character is ^] (Ctrl + ])



BusyBox v1.36.1 (2025-02-03 23:09:37 UTC) built-in shell (ash)

  _______                     ________        __
 |       |.-----.-----.-----.|  |  |  |.----.|  |_
 |   -   ||  _  |  -__|     ||  |  |  ||   _||   _|
 |_______||   __|_____|__|__||________||__|  |____|
          |__| W I R E L E S S   F R E E D O M
 -----------------------------------------------------
 OpenWrt 24.10.0, r28427-6df0e3d02a
 -----------------------------------------------------
=== WARNING! =====================================
There is no root password defined on this device!
Use the "passwd" command to set up a new password
in order to prevent unauthorized SSH logins.
--------------------------------------------------
root@OpenWrt:~#

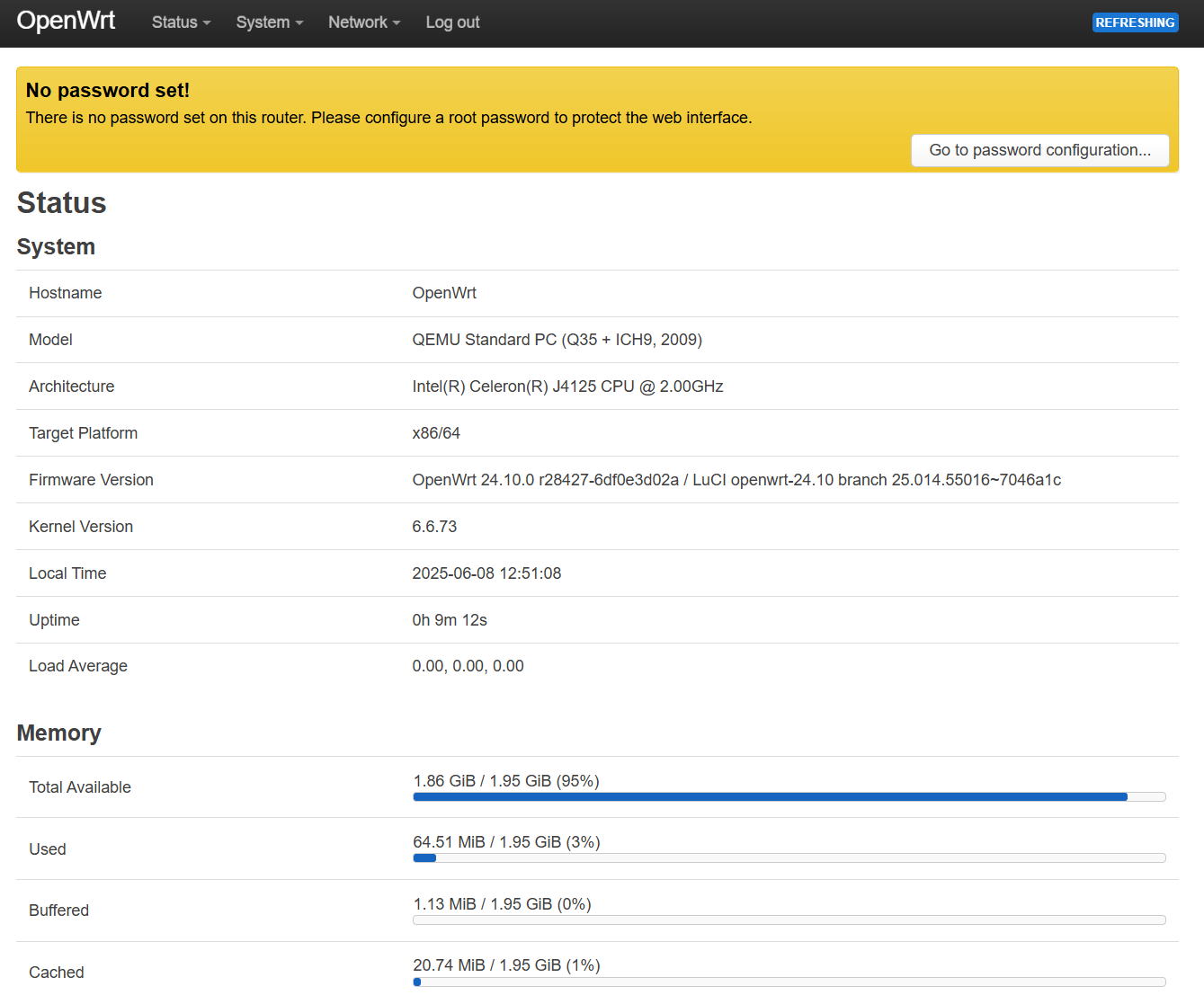

修改一下地址让自己可以访问到,即可直接访问 OpenWRT 的 LuCI 图形界面了,效果如下

800

eSir

GitHub 项目,esirplayground/AutoBuild-OpenWrt # 只有 GitHub Actions

Telegram, eSir PlayGround固件发布频道

https://drive.google.com/drive/folders/1MIzj4Hn9hdUZ3K8oksl2Efqs5inrBUQ7 # 各种编译好的 img 文件发布在 Google 云盘中

.img 文件命中的 gdq = 高大全 ~~~ 表示这个镜像包含的内容多,占用空间大。。。。

虚拟机测试做法:

  • 将下载的 img 转成 qcow2
    • qemu-img convert -f raw -O qcow2 openwrt-gdq-version-v1-2025-x86-64-generic-squashfs-legacy.img op.qcow2
  • 安装时使用 “Import existing disk image”,启动后即可直接进入系统
  • 修改一下地址让自己可以访问到,即可直接访问 Web 页面
